2" x 10cf Water Softener

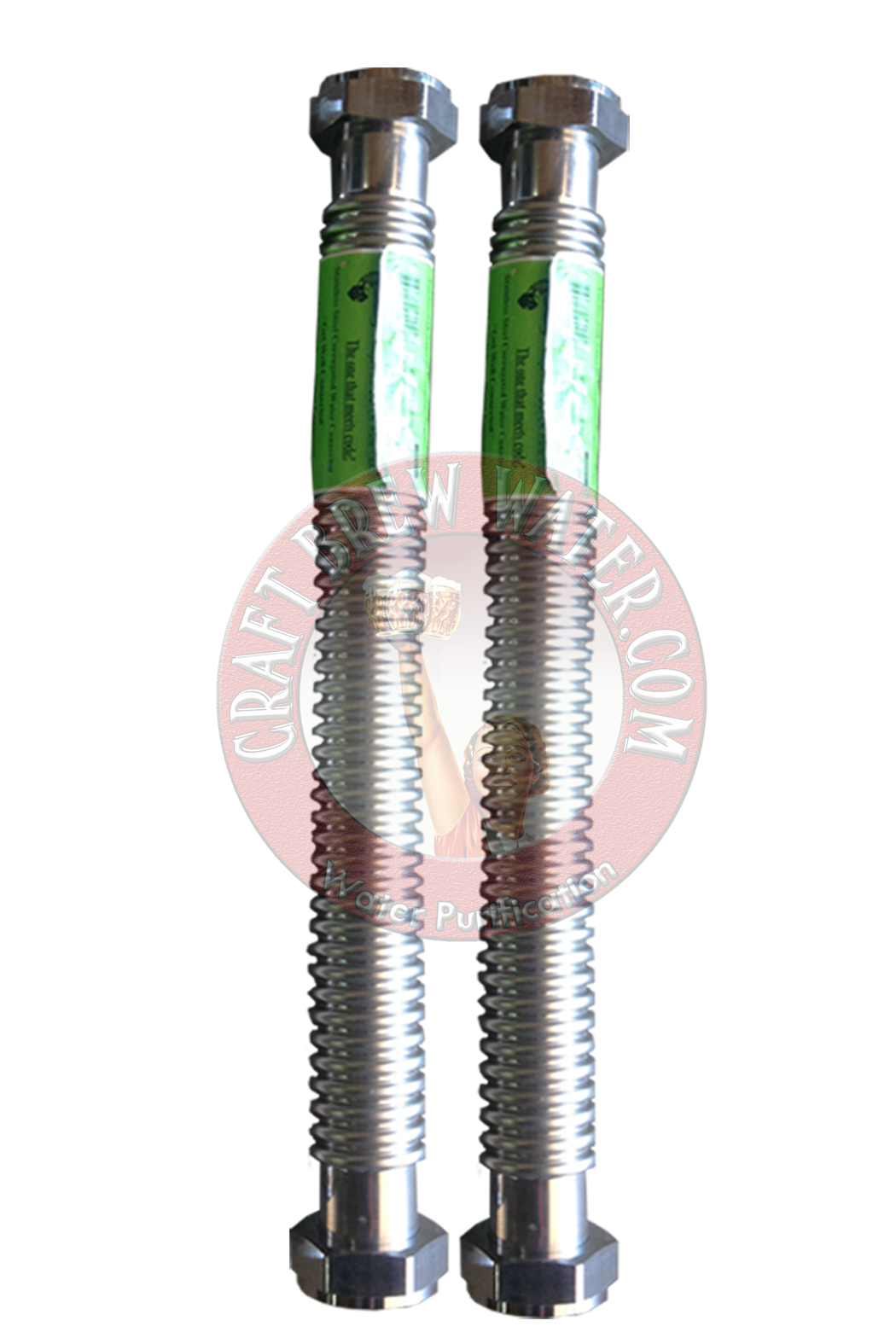

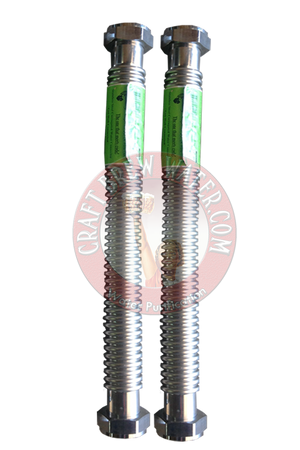

Inlet/Outlet (1)............................................................................................ 2” Female NPT
Cycles ....................................................................................................... up to 6
Valve Material............................................................................................ Lead free brass
Regeneration............................................................................................. Downflow
COntrol valve Flow RateS
Service @15 psi drop (includes meter)......................................... 115 gpm
Backwash @ 25 psi drop.............................................................. 80 gpm
Cv Service..................................................................................... 29.7
Cv Backwash................................................................................ 16.0
Operating Pressures
Minimum/Maximum...................................................................... 20 psi – 125 psi
Operating Temperatures
Minimum/Maximum...................................................................... 40º – 110º F
Meter specifications
Accuracy....................................................................................... ± 5%
Flow Rate Range........................................................................... 1.5 – 150 gpm
Gallon Range................................................................................. 20 – 1,500,000 gallons
Totalizer......................................................................................... 1 – 9,999,000 gallons
Dimensions & Weight
Distributor Pilot
Valve bodies with 2" Female NPT Inlet & Outlet.................. 1.90” OD (1.5" NPS)
Drain Line Connection.................................................................. 1.5” Female NPT
Brine Line Adapters Included....................................................... 1” Male NPT elbow,
¾” x 1” solvent weld elbow and
1⁄2" OD Poly Tube Compression
Mounting Base.............................................................................. 4” - 8 UN
Height From Top Of Tank.............................................................. 8.5”
Shipping Weight With Meter........................................................ 29 lbs.
Electrical Specifications AC Adapter
Supply Voltage..............................................................................120V AC
Supply Frequency.........................................................................60 Hz
Output Voltage..............................................................................12V AC
Output Current..............................................................................500 mA
Tank Applications
Water Softener.............................................................................. 12” – 48” diameter
Water Filter (2)............................................................................... 12” – 36” diameter
Cycles of Operation
Cycle Range of times minutes
1. Backwash 1st (upflow)............................................................... 1 - 20 or off
2. Regenerate Draw/Slow Rinse (downflow)............................... 1 - 99 or off
3. Backwash 2nd (upflow).............................................................. 1 - 20 or off
4. Fast Rinse (downflow).............................................................. 1 - 20 or off
5. Regenerant Refill (in service with treated water)..................... 0.1 - 99.0 or off
6. Service (downflow)
